What Are Process Towers & Columns? How Do They Work?

In industrial processing—especially in chemical, petrochemical, and oil & gas industries—many companies face challenges in achieving high-purity separation, efficient throughput, and operational safety. The absence of proper separation equipment can lead to product contamination, energy inefficiencies, and costly downtime. One of the most critical yet often misunderstood pieces of equipment used to solve these challenges are process towers and columns. Understanding their roles and working principles is essential for optimizing system design and production outcomes.

Process towers and columns are vertical vessels used in industrial operations to separate mixtures into their individual components through physical or chemical means such as distillation, absorption, stripping, or extraction. These structures work by exploiting differences in physical properties like boiling point, solubility, or partial pressure to isolate specific compounds within a mixture. Their internal components—such as trays, packing materials, and distributors—enhance contact between phases (gas-liquid or liquid-liquid) to maximize separation efficiency.

These units are not just tall cylinders—they are precision-engineered systems essential to refining, chemical synthesis, gas processing, and more. To truly grasp their importance and functionality, we must explore their types, components, and applications in detail.

What Are the Core Functions of Process Towers and Columns?

In chemical processing facilities, one of the most critical—but often misunderstood—components is the process tower or column. When these columns are not properly understood, sized, or operated, they can lead to product inefficiencies, poor separation, excessive energy consumption, and even plant shutdowns. This problem becomes especially severe in high-throughput operations such as oil refineries, gas treatment plants, or chemical processing units. The solution lies in mastering the core functions of these columns, which are specifically engineered for the precise separation and purification of multi-component mixtures. In this article, I’ll walk you through everything you need to know to avoid costly downtime, reduce operational risks, and achieve optimal product yield.

Process towers and columns are vertical vessels designed for separating, purifying, or reacting chemical components based on physical or chemical properties such as boiling point, solubility, or reaction kinetics. Their core functions include distillation, absorption, stripping, extraction, and reactive separation, and they are used extensively in oil refining, petrochemical manufacturing, gas treatment, and pharmaceutical production.

Whether you are operating a refinery, building a new processing plant, or retrofitting an existing system, understanding the core functions of process columns is crucial to ensure performance reliability and regulatory compliance. Keep reading to dive deeper into how these towers work, what components they use, and how to select or maintain them effectively.

\

Distillation – The Foundation of Separation Technology

Distillation is the most widely used separation method in chemical process industries. It relies on differences in component boiling points to separate liquid mixtures into individual compounds or groups. In a distillation column, a feed mixture enters the middle portion of the tower. Heat applied at the bottom generates vapor that rises through a series of trays or packing materials. As vapor travels upward, it contacts descending liquid, resulting in mass and heat transfer. The lighter components (lower boiling points) continue upward and exit as overhead vapor, while heavier components (higher boiling points) condense and exit from the bottom.

This principle is utilized across:

• Crude oil fractionation
• Solvent recycling
• Alcohol purification
• LNG processing

These towers are optimized by adjusting:

• Reflux ratio
• Feed stage location
• Tray/packing design
• Heat input (reboiler duty)

This process continues to be the workhorse of separation because of its versatility and robustness in processing large-scale, mixed-component feeds.

Absorption – Capturing Gases from Streams

Absorption towers are designed to capture one or more specific components from a gas stream using a liquid solvent. The gas is introduced at the bottom of the column and flows upward, while a solvent flows down from the top. The target gas component is absorbed into the liquid due to differences in solubility, temperature, or chemical reactivity.

This method is commonly used in:

• CO₂ removal from natural gas
• SO₂ removal in flue gas treatment
• Ammonia recovery

Performance is influenced by:

• Solvent flow rate
• Gas-liquid contact area
• Column pressure and temperature
• Solvent regeneration capabilities

Absorption columns often use random or structured packing materials to increase mass transfer efficiency, making them ideal for selective gas treatment operations.

Stripping – Removing Volatile Compounds from Liquids

Stripping is the reverse of absorption. Instead of absorbing gas into liquid, it removes volatile components from liquid mixtures by contacting them with an inert gas or steam. This process is especially common in wastewater treatment, amine regeneration, and hydrocarbon removal applications.

Column efficiency depends on:

• Vapor flow rate
• Tray or packing selection
• Bottom temperature (reboiler design)
• Height equivalent to theoretical plate (HETP)

Well-designed stripper columns maintain low energy use while achieving high removal rates of volatile contaminants.

Extraction – Selective Liquid-Liquid Separation

Extraction columns use differences in solubility rather than boiling point to separate target components between two immiscible liquids. This is essential when distillation isn’t feasible, such as when components have similar volatilities or are heat-sensitive.

Use cases include:

• Pharmaceutical compound purification
• Glycerin removal in biodiesel
• Heavy metal extraction in mining

Extraction towers may employ rotating internals, pulsed agitation, or packed columns depending on required mass transfer intensities.

Reactive Distillation – Combining Reaction and Separation

Reactive distillation columns integrate chemical reactions and separation in the same vessel. These are increasingly popular in green chemistry applications due to their compactness and process intensification benefits.

Key challenges include:

• Catalyst placement
• Managing heat of reaction
• Ensuring product purity while driving conversion

Despite complexity, reactive distillation dramatically reduces capital and energy costs in suitable systems.

Key Internal Components and Their Role in Functionality

The internals of a process column are critical to its efficiency and include:

• Trays (sieve, valve, bubble cap): Control vapor-liquid interaction
• Structured/random packing: Increase surface area for mass transfer
• Redistributors: Balance fluid distribution
• Reboilers: Provide thermal energy from bottom
• Condensers: Condense vapor at the top

Proper internal selection ensures optimal column hydraulics and thermodynamics.

Real Case Study – Crude Atmospheric Distillation Tower

A standard CDU tower processes crude oil at \~350°C and 1–2 atm pressure. It features:

• 30–50 trays
• Side draws for naphtha, kerosene, diesel
• Overhead gas recovery
• Bottom residue stream to vacuum distillation

The performance is governed by feed composition, column pressure, and reflux ratio. Even minor fouling or temperature deviations can destabilize output quality and economics.

Monitoring Key Operational Parameters

Column health and performance rely on continual monitoring of key indicators:

Modern DCS (Distributed Control Systems) and AI models are used to predict failures and optimize control strategies in real time.

Material and Fabrication Considerations

Depending on process fluids, materials used include:

• Carbon steel: General use, low corrosion risk
• Stainless steel: Acidic streams, higher temperature
• Inconel / Hastelloy: Corrosive, high-temp gases
• PTFE linings: Specialty chemical processes

Proper corrosion allowance and weld quality are essential to ensure long-term reliability. Nondestructive testing (NDT) and corrosion monitoring devices are recommended during operations.

Summary

Process towers and columns are indispensable in industrial-scale chemical operations. From fractional distillation to reactive extraction, they provide the precise separation and purification required for high-performance processing. Their core functions—distillation, absorption, stripping, extraction, and reaction—are supported by sophisticated internal designs and real-time control systems. When properly engineered, operated, and maintained, these towers dramatically improve efficiency, reduce waste, and enable safe, scalable production across industries.

How Do Distillation Columns Work in Separating Components?

In the world of chemical engineering, the efficiency and purity of a production process often come down to one vital piece of equipment—the distillation column. Yet, when its internal functioning is misunderstood or poorly operated, the consequences can include impure output streams, excessive energy use, hazardous pressure buildups, and even catastrophic failure. Understanding how a distillation column separates components is the key to solving many common plant performance issues. In this article, we will thoroughly explain how distillation columns work and why they are central to industrial separation and purification processes.

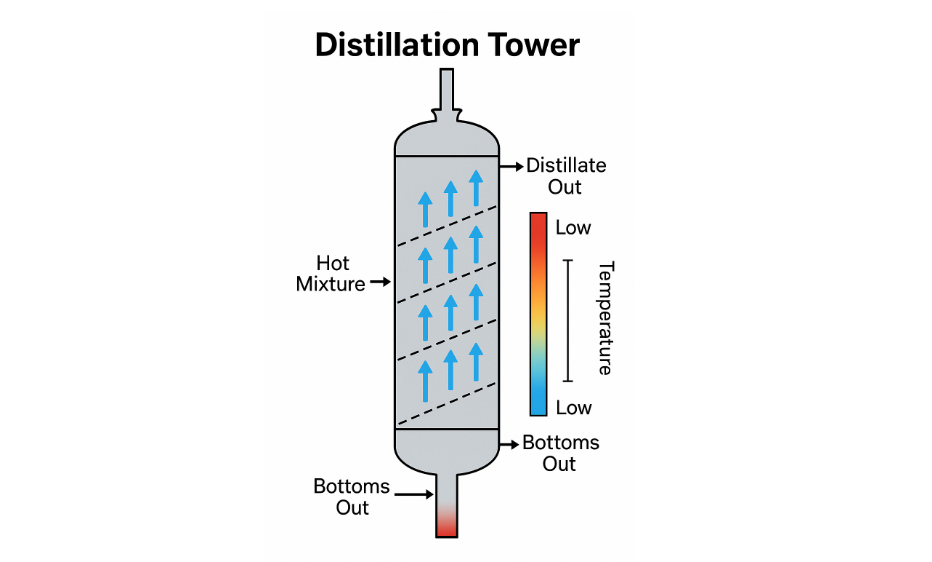

Distillation columns separate components in a liquid mixture based on differences in their boiling points. As the mixture is heated, the more volatile components vaporize and rise up the column while heavier components condense and fall downward. This countercurrent movement of vapor and liquid enables repeated vapor-liquid contact on trays or packing materials, achieving progressive separation until each component can be withdrawn at its optimal purity level.

If you’re a plant operator, process engineer, or procurement specialist trying to optimize separation performance or troubleshoot column inefficiencies, read on. This in-depth article will help you understand the physics, internal design, and control mechanisms behind effective distillation.

\

Principles of Vapor-Liquid Equilibrium (VLE)

At the core of how distillation columns function is the principle of vapor-liquid equilibrium (VLE). This concept dictates that for any given component in a liquid mixture, there is a specific temperature and pressure at which the rate of evaporation equals the rate of condensation.

In a distillation column:

• Vapor rises from the bottom as it’s heated
• Liquid descends from the top as it condenses
• At each stage (tray or packing layer), components partially evaporate or condense depending on their volatility

The more volatile (lower boiling point) components concentrate in the vapor phase and rise toward the top, while less volatile (higher boiling point) ones stay in the liquid phase and move downward.

As this equilibrium is achieved repeatedly along the column height, the feed mixture is gradually separated into purified fractions.

Internal Column Structure: Trays and Packing

Distillation columns are built with internal components designed to enhance vapor-liquid contact. The more contact that occurs, the more effective the separation.

There are two primary types of internal configurations:

Trays force vapor through holes or caps to bubble through the liquid, while packing provides a high-surface-area medium for thin-film liquid-vapor interaction.

A distillation column typically contains:

• Feed inlet (mid-height)
• Reboiler (heats the bottom)
• Condenser (cools and condenses the top vapor)
• Rectifying section (above feed, vapor enrichment)
• Stripping section (below feed, liquid enrichment)
• Reflux drum and return line

This structure enables the mixture to be separated into desired product streams.

Reflux and Reboil: The Energy Drivers of Separation

Two critical flows define how efficiently a distillation column operates: reflux and reboil.

• Reflux is the portion of condensed overhead vapor returned to the column to help wash the rising vapors and enhance purity.
• Reboil is the amount of heat supplied to the bottom of the column to vaporize liquid and drive components upward.

Adjusting the reflux ratio can make separation sharper, but it also increases energy usage. Similarly, higher reboiler duty improves separation at the cost of steam or energy consumption.

Step-by-Step Component Separation Process

Here’s how separation unfolds inside a functioning distillation column:

1. Feed Entry: A multi-component liquid is fed into the column at a mid-level feed tray or bed.
2. Reboiler Heating: The bottom reboiler heats the liquid, producing vapor that rises.
3. Vapor Rises: The vapor rises and interacts with descending liquid on trays or packing, creating mass transfer zones.
4. Condensation: As vapor rises, it cools, and heavier components condense.
5. Overhead Condensation: At the top, lightest components are condensed and collected. Some are returned as reflux.
6. Bottom Withdrawal: The heaviest, least volatile components collect at the base and are removed.

This cycle occurs continuously in steady-state operations.

McCabe-Thiele Method: Theoretical Analysis

One of the most common graphical tools for designing and understanding distillation columns is the McCabe-Thiele diagram, which helps determine the number of theoretical stages required for a given separation.

Key variables include:

• Relative volatility
• Reflux ratio
• Feed condition (saturated liquid/vapor)
• Desired top and bottom compositions

This method is essential during column design and optimization phases to balance energy and hardware costs with product specifications.

Industrial Applications of Distillation Columns

Distillation columns are integral to virtually every industry involving fluid mixtures:

These columns often operate under:

• Atmospheric pressure (e.g., crude towers)
• High vacuum (e.g., vacuum distillation)
• Elevated pressure (e.g., gas fractionators)

Typical Performance Metrics

Measuring and maintaining a column’s performance involves monitoring several KPIs:

Modern plants employ sensors and advanced process controls to monitor and adjust these metrics in real-time.

Case Study: Ethanol Distillation from Fermented Mash

An ethanol plant may use a distillation column to separate ethanol from a water-rich fermented mixture (\~10% ethanol).

Steps include:

• Feeding mash into the column
• Heating with steam reboiler
• Removing overhead ethanol (\~95%)
• Returning reflux to improve purity
• Using molecular sieves afterward for dehydration

This process is an example of azeotropic distillation, where separation becomes limited due to phase behavior at high concentrations, requiring advanced separation strategies.

Summary

Distillation columns are the cornerstone of thermal separation processes in nearly every chemical and petroleum operation. By leveraging differences in component volatilities, coupled with smart internal design and energy control via reflux and reboil, they achieve high-purity separation. Whether using trays or packing, distillation remains one of the most cost-effective and scalable methods for purifying fluids in modern industry.

What Are the Main Types of Process Columns and How Do They Differ?

In industrial processing, selecting the wrong type of process column can lead to critical failures: inefficient separations, product contamination, equipment damage, or skyrocketing operating costs. Each type of column is designed for specific physical or chemical separations—so misapplying one can render your entire process nonviable. If you’ve ever experienced low separation efficiency or unstable column operation, chances are that either the wrong column type was selected or the process conditions changed without revalidating the design. Understanding the main types of process columns and their distinct functions is essential for optimizing your system’s output and reliability. This article explores the major types of columns, how they differ, and where each should be used.

The main types of process columns include distillation columns, absorption columns, stripping columns, extraction columns, and reactive (or catalytic) columns. They differ in their separation mechanisms—distillation uses boiling point differences, absorption captures gases with a solvent, stripping removes volatiles from liquids, extraction separates based on solubility, and reactive columns integrate chemical reactions with separation. Each column type has unique design, internals, and operational parameters suited to specific industrial needs.

If you’re planning to expand your plant, evaluate column performance, or improve separation efficiency, this guide will help you match column type with process requirement—so you can design smarter, operate safer, and produce more efficiently.

\

Distillation Columns – Separating Based on Boiling Points

Distillation columns are the most widely used process columns in chemical and petrochemical plants. They separate components of a liquid mixture by leveraging differences in boiling points. As heat is applied at the column bottom, components with lower boiling points vaporize and rise, while heavier ones condense and fall.

Subtypes:

• Fractionating Columns: Used in crude oil refineries
• Batch Distillation Columns: For batch processes or lab-scale operations
• Vacuum Distillation Columns: For high-boiling or thermally sensitive materials
• Azeotropic or Extractive Columns: Used when components form azeotropes

These columns are ideal for:

• Crude oil fractionation
• Ethanol purification
• Solvent recycling
• Air separation

Absorption Columns – Removing Gases with Liquids

Absorption columns transfer components from a gas phase into a liquid solvent. The gas mixture enters at the bottom and rises through packing material or trays, contacting a descending solvent that absorbs the target gas component.

Subtypes:

• Packed Absorbers: Low-pressure drop, high surface area
• Tray Absorbers: Better for foaming or viscous systems
• Spray Towers: Simpler systems for dust or particulate removal

Key design aspects include:

• Solvent circulation rate
• Contact time
• Column height and packing depth

These columns are common in:

• Power plant emissions treatment
• Fertilizer production
• Gas processing units

Stripping Columns – Removing Volatile Components from Liquids

Stripping columns work by passing a gas (commonly steam or air) upward through a liquid, which removes volatile or dissolved components. It’s essentially the opposite of absorption.

Subtypes:

• Steam Strippers: Common in hydrocarbon industries
• Air Strippers: Used in environmental remediation
• Reboiled Strippers: Integrated with heat exchangers for higher efficiency

Performance depends on:

• Vapor-liquid contact
• Reboiler duty
• Stripping gas rate

Typical industries include:

• Refining
• Petrochemicals
• Environmental treatment

Extraction Columns – Separation Based on Solubility

Liquid-liquid extraction columns use immiscible solvents to separate a solute based on differential solubility. Unlike distillation, extraction is used when boiling points are similar or the components are heat-sensitive.

Subtypes:

• Rotating Disc Contactors (RDC): For high throughput
• Pulsed Columns: Agitation-assisted mixing
• Packed Extraction Columns: For compact setups

Column design involves:

• Phase ratio optimization
• Interfacial tension control
• Solvent recovery systems

Extraction columns are essential for:

• Pharmaceutical production
• Agrochemicals
• Specialty chemical synthesis

Reactive Columns – Reaction and Separation in One

Also called reactive distillation columns, these units combine chemical reaction and separation in a single vessel. This intensification improves reaction conversion while minimizing energy usage and separation steps.

Examples:

• MTBE Production: Isobutylene + Methanol
• Esterification Reactions: Acid + Alcohol → Ester + Water
• Biodiesel Production: Free fatty acids + Methanol

This column type reduces:

• Capital expenditure (CAPEX)
• Equipment footprint
• Energy consumption

Industries using reactive columns:

• Fuel additive production
• Petrochemicals
• Green chemistry plants

Comparison Table – Key Differences Between Column Types

Summary

Each process column serves a distinct purpose in industrial separation and purification. Distillation is ideal for thermal separation, absorption and stripping are for gas-liquid mass transfer, extraction handles non-volatile mixtures, and reactive columns combine chemistry and process intensification. Knowing their differences and applications helps avoid misapplication, reduce costs, and improve plant performance.

What Internal Components Are Used in Process Towers to Optimize Separation?

When process towers fail to deliver optimal separation—whether in a distillation, absorption, or stripping system—it often comes down to ineffective internal configurations. Problems like channeling, weeping, foaming, flooding, or insufficient mass transfer area are usually traced back to poor design or wear of internal components. In high-throughput chemical and refining systems, even a 2–3% reduction in separation efficiency can mean millions in losses or regulatory violations. Fortunately, these issues can be addressed with the right internal components. This article will walk you through the core internals used in process towers and how they drive efficiency, purity, and throughput in critical industrial operations.

The internal components of process towers—such as trays, packing materials, liquid distributors, redistributors, reboilers, and condensers—are designed to maximize vapor-liquid or liquid-liquid contact area, ensure uniform flow distribution, and facilitate phase changes. Each component plays a vital role in enhancing mass transfer, preventing maldistribution, and improving separation efficiency across various types of process towers.

To ensure you’re designing, upgrading, or troubleshooting your tower effectively, this guide explains the types, functions, and selection criteria of all major tower internals in modern chemical plants.

\

Trays – Vapor-Liquid Contact Platforms

Trays (also known as plates) are the most commonly used internals in distillation and stripping columns. They break up the rising vapor and provide large contact areas with the descending liquid. Each tray functions as a discrete separation stage.

Types of Trays:

• Sieve Trays: Simple perforated plates; good for clean, non-foaming services
• Valve Trays: Feature movable valves that open under vapor flow, reducing weeping and improving turndown ratio
• Bubble Cap Trays: Vapor passes through risers and is dispersed by caps into the liquid; excellent at low flow rates and foaming systems

Key Tray Design Parameters:

• Tray spacing (commonly 18–24 inches)
• Weir height (controls liquid hold-up)
• Downcomer area (ensures liquid drainage)
• Jet flood point (vapor velocity limit)

Proper tray design enhances:

• Mass transfer efficiency
• Tray-to-tray separation
• Tower stability

Packing – High Surface Area for Low Pressure Drop

Packing is widely used in towers where pressure drop is a concern or where a high surface area is needed for efficient mass transfer. It is commonly applied in absorption, stripping, and vacuum distillation towers.

Types of Packing:

• Random Packing: Includes Raschig rings, Pall rings, and Berl saddles; inexpensive and easy to install
• Structured Packing: Corrugated sheets arranged in an orderly fashion; provides superior surface area and lower pressure drop

Key Performance Factors:

• Packing size (mm)
• Void fraction (porosity)
• Liquid holdup
• Flooding point

Well-installed packing ensures even vapor-liquid distribution and minimizes channeling or bypassing.

Liquid and Vapor Distributors – Ensuring Uniform Flow

Distributors are critical for preventing channeling and maldistribution, especially in packed columns. Uneven distribution of liquid or vapor drastically reduces mass transfer efficiency.

Liquid Distributors:

• Trough-type: Suitable for high liquid rates
• Orifice pan: Perforated plates for uniform drip
• Ladder-type: Used in low-flow conditions

Vapor Distributors:

• Ensure even vapor rise before entering the packed bed
• Eliminate radial maldistribution

Redistributors are also installed mid-column in multi-bed packed towers to correct maldistribution and redistribute flow for the next bed.

Reboilers – Supplying Heat for Separation

Reboilers generate vapor by heating the bottom liquid, driving lighter components upward. They are essential to distillation and stripping towers.

Common Types:

• Kettle Reboiler: Shell-and-tube exchanger with external circulation
• Thermosiphon Reboiler: Natural circulation without pumps
• Forced Circulation Reboiler: Uses pumps, suitable for viscous fluids

Proper reboiler selection and design ensures:

• Stable column bottom temperature
• Optimal vapor rate
• Energy efficiency

Condensers – Cooling and Reflux Control

At the top of distillation columns, condensers convert vapor into liquid for collection or reflux. The returned reflux enhances separation by providing additional liquid contact.

Types of Condensers:

• Total Condenser: Condenses all overhead vapor
• Partial Condenser: Allows light gases to escape; used for split separations

Modern columns may also use air-cooled, water-cooled, or refrigerated condensers depending on the process requirements.

Demisters and Mist Eliminators – Purity and Safety

These mesh-like or vane structures are placed near the top of the column to trap entrained liquid droplets in vapor flow. They:

• Prevent contamination of overhead product
• Protect compressors or downstream equipment
• Enhance product recovery

Types:

• Wire mesh pads
• Vane-type mist eliminators
• Coalescing pads

A well-designed mist eliminator can reduce entrainment to <10 ppm.

Internal Summary Table – Components, Function, and Use

Summary

The internal components of process towers are not optional accessories—they are core to achieving high separation efficiency, product purity, and operational safety. Each component—from trays and packing to reboilers and distributors—plays a critical role in vapor-liquid equilibrium, flow distribution, and heat exchange. Selecting and maintaining the right internal elements ensures stable operations, energy efficiency, and compliance with quality standards. A deep understanding of these internals enables plant operators and engineers to build better towers and solve problems proactively.

How Are Process Towers and Columns Designed for Specific Applications?

When a process tower is incorrectly designed for its intended application—say, using a distillation column meant for clean hydrocarbons in a bio-fermentation process—the consequences can be severe: fouling, flooding, low product purity, operational shutdowns, or complete equipment failure. In highly specialized industries like petrochemicals, pharmaceuticals, or environmental treatment, each process stream has unique physical and chemical properties that demand tailored tower design. Off-the-shelf designs or improper sizing often result in underperformance, excessive energy use, and unplanned downtime. To achieve maximum efficiency and safety, process towers must be purpose-built—taking into account process conditions, feed compositions, separation goals, and operational constraints. This article provides a comprehensive breakdown of how process towers and columns are customized for specific industrial applications.

Process towers and columns are designed for specific applications by tailoring their internal components, sizing, material selection, and operating conditions based on factors such as the feed composition, desired separation, temperature and pressure profiles, flow rates, chemical reactivity, and purity requirements. Engineers use thermodynamic modeling, hydraulic simulations, material compatibility assessments, and process control strategies to create a column configuration that meets the operational goals and safety standards of each unique application.

Whether you’re designing a new distillation system, optimizing a solvent recovery column, or troubleshooting gas treatment towers, understanding the design customization process is crucial to achieving long-term success in plant operations.

\

Key Design Factors That Drive Application-Specific Tower Engineering

Designing a process tower for a particular use case involves balancing chemical, thermal, mechanical, and operational parameters. The following are the primary factors that influence tower configuration:

A rigorous front-end engineering design (FEED) process is required to match tower specifications with application performance targets.

Step-by-Step Approach to Designing a Process Column for a Specific Application

Engineers typically follow a structured design methodology to tailor each column precisely:

Step 1: Define the Process Requirements

• What components must be separated?
• What is the feed condition: temperature, pressure, phase?
• What are the desired product specifications?

Step 2: Perform Thermodynamic Modeling

• Use tools like Aspen Plus, HYSYS, or ProMax
• Create VLE (vapor-liquid equilibrium) or LLE (liquid-liquid equilibrium) diagrams
• Identify azeotropes, critical points, and minimum reflux ratios

Step 3: Determine Number of Theoretical Stages

• Apply McCabe-Thiele or Fenske-Underwood-Gilliland methods
• Evaluate purity vs. energy cost tradeoffs

Step 4: Size the Column

• Calculate column diameter based on vapor and liquid traffic
• Determine tower height using stage spacing and safety allowances

Step 5: Select Internal Components

• Trays (sieve, valve, bubble cap) for high-capacity, clean services
• Packing (structured or random) for low-pressure or corrosive services
• Distributors, redistributors, reboilers, and condensers matched to heat and flow dynamics

Step 6: Choose Materials of Construction

Material selection must resist corrosion, thermal stress, and fouling:

Step 7: Integrate Instrumentation and Control

• Temperature and pressure sensors at multiple zones
• Flow meters for feed, reflux, product streams
• Level indicators in reboiler and reflux drum
• Emergency pressure relief and fail-safe systems

Industry-Specific Case Examples

Crude Oil Fractionator Design

• Multi-component feed with wide boiling range
• Requires 30–50 trays with side draws
• Overhead vapor condensed and refluxed
• Bottom residue sent to vacuum distillation

Pharmaceutical Solvent Recovery Column

• Handles ethanol-water mixtures with \~90% ethanol
• Operates under vacuum to prevent decomposition
• Structured packing used for low pressure drop
• Tight purity control (≥ 99.8%) with high reflux

CO₂ Absorption Tower for Flue Gas

• Packed column with aqueous MEA solvent
• High liquid-to-gas ratio and good mass transfer required
• Corrosion-resistant alloy materials
• Tall column (>20m) with multiple liquid redistributors

Process Simulation and Modeling Tools

Engineers rely heavily on process simulation software to verify and fine-tune column performance before fabrication:

Final Design Validation and Fabrication

Before a column design moves into fabrication:

• CFD analysis (computational fluid dynamics) may be performed
• Pilot testing confirms scale-up behavior
• Stress analysis under ASME Section VIII or API 650 is conducted
• Internals layout is 3D-modeled for space and performance

Fabrication involves:

• Column shell and head construction
• Tray or packing installation
• Nozzle positioning and weld inspections
• Surface treatment (pickling, passivation, coating)

Summary

Designing a process tower or column for a specific application is a precise, multi-disciplinary engineering task. From thermodynamic analysis to material selection and control system integration, each component of the design must align with the unique needs of the target separation. The result is a tailored solution that achieves product quality, throughput, safety, and regulatory compliance—all while minimizing energy and operating costs. Whether it’s a refinery crude tower or a biotech solvent recovery column, design customization is the only way to achieve world-class operational performance.

What Are the Key Operational Challenges and Maintenance Practices for Towers and Columns?

Process towers and columns are the workhorses of separation in industries like refining, petrochemicals, pharmaceuticals, and gas processing. But despite their robust design, these towering structures face constant operational threats: fouling, flooding, weeping, corrosion, and internal damage. If these issues are not proactively managed, they can cause serious outcomes—ranging from reduced throughput and product off-specification to equipment failure, safety incidents, and costly unplanned shutdowns. Understanding the key operational challenges and maintenance strategies is essential for extending column life, maintaining efficiency, and ensuring plant reliability. This article will walk you through the most critical problems encountered in tower operations—and exactly how to prevent or resolve them.

The key operational challenges in towers and columns include fouling, corrosion, flooding, weeping, entrainment, maldistribution, and mechanical damage to internals. Effective maintenance practices involve regular inspection, cleaning, internals monitoring, corrosion protection, instrumentation calibration, and scheduled shutdowns. A combination of predictive diagnostics, performance monitoring, and material integrity assessments is necessary to maintain safe and efficient long-term operation of process towers.

If you’re responsible for plant reliability, operations, or maintenance planning, keep reading—this guide will help you establish robust operational and maintenance strategies that reduce downtime and protect your separation assets.

\

Overview of Major Operational Challenges in Process Towers

Let’s explore each challenge in more technical depth with solutions.

Fouling – The Silent Efficiency Killer

Fouling is the gradual buildup of unwanted materials inside the tower—such as polymers, hydrocarbons, scaling salts, biological growth, or corrosion products.

Causes:

• High-viscosity or impure feedstocks
• Uncontrolled polymerization
• Thermal degradation of organics
• Salt precipitation (e.g., ammonium salts)

Detection:

• Increased pressure drop
• Decreased efficiency or throughput
• Hot spots detected by temperature sensors
• Change in product purity

Preventive Measures:

• Feed pre-treatment (filters, heat exchangers)
• Antifoulant injection programs
• Material selection (e.g., polished trays, PTFE coatings)
• Periodic pigging or hydroblasting

Scheduled chemical cleaning or manual tray washing during turnarounds is often required for long-term fouling control.

Flooding and Weeping – Hydraulic Instability

Flooding occurs when vapor flow becomes too high or liquid flow too restricted, causing liquid accumulation and pressure spikes. Weeping is the opposite problem—vapor flow is too low to support the liquid on the trays, causing it to leak through perforations.

Causes of Flooding:

• Overloading beyond design limits
• Fouled downcomers or distributors
• Improper tray level settings

Causes of Weeping:

• Operating below minimum vapor rate
• Excessive pressure drop
• Damaged or corroded trays

Maintenance Response:

• Rebalance vapor-liquid loads
• Inspect trays for damage or fouling
• Calibrate level controllers and sensors
• Restore pressure control logic

CFD modeling or tray hydraulic audits can also be used to optimize operation and prevent reoccurrence.

Corrosion – The Structural Weakener

Corrosion is one of the most dangerous operational challenges because it weakens column integrity from within. If not monitored, it can lead to leaks, ruptures, or explosions.

Types of Corrosion:

• Uniform corrosion: General thinning across internal surfaces
• Pitting corrosion: Localized attack, especially in chloride-rich systems
• Stress corrosion cracking: Caused by cyclic thermal and mechanical stress
• Galvanic corrosion: Occurs between dissimilar metals

Hot Spots for Corrosion:

• Feed nozzles
• Tray support rings
• Reboiler connections
• Welded seams

Preventive Practices:

• Use corrosion-resistant alloys (e.g., 316L, Inconel, Hastelloy)
• Apply internal coatings or linings
• Monitor with corrosion coupons or online probes
• Implement cathodic protection in salt-heavy systems

Mechanical Damage to Internals

Internal damage can occur during process upsets, sudden pressure changes, or due to poor fabrication and installation quality. Collapsed trays or displaced packing disrupt separation and increase pressure drop.

Causes:

• Hydraulic surges (overpressure)
• Improper startup or shutdown sequences
• Inadequate tray support or welding flaws
• Equipment mishandling during maintenance

Solutions:

• Install surge suppressors and relief valves
• Train personnel on startup/shutdown SOPs
• Use guided tray installation and torque specifications
• Perform drone or robotic internal inspections

Best Maintenance Practices for Process Towers and Columns

A proactive maintenance program must combine preventive, predictive, and corrective strategies. Here’s how to do it:

Preventive Maintenance:

• Schedule column inspections every 1–3 years
• Clean internals, remove deposits
• Replace or recalibrate pressure/temperature instruments
• Check insulation and fireproofing
• Inspect nozzles, feed lines, and distributor plates

Predictive Maintenance:

• Use online sensors and analyzers (dP, T, composition)
• Apply machine learning models for fouling prediction
• Monitor vibration and acoustic signals
• Integrate with plant DCS or SCADA systems

Corrective Maintenance:

• Tower entry for tray/pad replacement
• Recoating corroded surfaces
• Shell welding or reinforcement
• Emergency shutdown and pressure relief testing

Maintenance Inspection Checklist

Summary

Process towers and columns operate under demanding conditions—and they will inevitably face challenges like fouling, flooding, corrosion, and mechanical stress. However, with a strong operational monitoring system and structured maintenance practices, these problems can be identified early, managed effectively, and resolved safely. Whether it’s a crude tower, absorption column, or specialty stripping unit, the key to long equipment life and high performance lies in proactive care and continuous improvement.

Conclusion: Why Understanding Process Towers & Columns Matters

Process towers and columns are not just towering steel structures—they are the beating heart of countless industrial operations. From separating crude oil into its components to recovering solvents in pharmaceutical plants, these vertical vessels silently drive production, energy efficiency, and product quality. However, when misunderstood or poorly managed, they can become sources of inefficiency, safety risks, and massive financial loss.

Understanding how process towers work—how they are designed, what internal components they contain, how they separate components, and how they must be maintained—is not optional. It’s essential. Every plant manager, process engineer, operations head, and maintenance specialist benefits from a solid command of column behavior, whether that means preventing flooding, optimizing tray loading, or planning a turnaround.

By mastering the science and engineering behind these systems, organizations gain:

• Higher product yield and purity
• Reduced energy consumption
• Increased equipment lifespan
• Fewer unplanned shutdowns
• Greater safety and compliance

From distillation and absorption to extraction and reactive separations, process towers must be carefully selected, custom-designed, precisely operated, and rigorously maintained. When these elements come together, you’re not just running a column—you’re optimizing the entire production process.

Ready to Build, Optimize, or Troubleshoot Your Process Tower?

Our team of experts is here to help you design, retrofit, or maintain your process towers and columns for peak performance. Whether it’s a new installation or solving a persistent operational issue, we offer technical guidance backed by real-world experience.

Contact us now for a personalized consultation on how to maximize the efficiency, safety, and profitability of your process separation systems.

FAQ

Q1: What are process towers and columns used for?
A1: Process towers and columns are essential components in chemical and industrial plants, primarily used for separating mixtures based on physical or chemical properties. Common types include distillation columns (for separating liquids by boiling point), absorption towers (for removing gases using liquids), and stripping columns (for removing components from a liquid using gas). These structures optimize the efficiency of processes like refining, gas treatment, and chemical synthesis.

Q2: How does a distillation column work?
A2: A distillation column operates on the principle of separating liquid mixtures by their boiling points. A heat source vaporizes the mixture at the bottom, and as the vapor rises, it cools and condenses at various levels, with different components condensing at different heights. Trays or packing material inside the column facilitate this separation, allowing for the collection of purified components at various stages.

Q3: What are the main types of process columns in industrial settings?
A3: The main types of process towers and columns include:

• Distillation Column: Used to separate liquid mixtures based on differences in boiling points.
• Ammonia Synthesis Tower: Used for synthesizing ammonia under high temperature and pressure.
• Fractionating Column: Commonly used in petroleum refining to separate complex hydrocarbon mixtures.
• Extraction Column: Designed for performing liquid-liquid or solid-liquid extraction processes.
• Recovery Column: Utilized to recover valuable components from waste gases or liquids.

These towers are selected based on the specific requirements of chemical or industrial processes and are widely used across industries such as petrochemicals, pharmaceuticals, and environmental engineering.

Q4: Why are trays and packing important in process columns?
A4: Trays and packing provide surface area for vapor-liquid contact within a column, which is crucial for effective mass transfer and separation. Trays allow staged interaction and easier maintenance, while packing materials (structured or random) increase efficiency by promoting continuous contact and reducing pressure drop. The choice between trays and packing depends on the process, pressure conditions, and maintenance needs.

Q5: Is there a difference between towers and columns in processing plants?
A5: While the terms “towers” and “columns” are often used interchangeably, there can be subtle distinctions based on industry or regional preference. Technically, a “tower” often refers to larger, vertical vessels like absorption or cooling towers, whereas “column” typically describes equipment used for separation processes, such as distillation or extraction. However, in most industrial contexts, both terms denote vertical process vessels involved in separation.

References

1. Introduction to Distillation Columns – CheResources
2. Chemical Engineering Guide to Separation Processes – Chemical Engineering
3. Absorption Towers Explained – ScienceDirect
4. Distillation Column Design Basics – LinkedIn
5. Packed vs Tray Columns – Campbell Petroleum
6. Mass Transfer in Packed Towers – Engineering Toolbox
7. Introduction to Process Equipment – LearnChemE
8. Types of Chemical Process Towers – IntechOpen
9. Separation Technology Overview – Northwestern University
10. Distillation and Industrial Column Operation – K-Patents
