MED Desalination System & Structural Frames for IDE

Project Overview

This project involved the complete mechanical fabrication, electrical assembly, and structural integration of a 3,600 m³/day Multi-Effect Distillation (MED) seawater desalination system, delivered to IDE Ltd., one of the world’s leading water treatment and desalination companies.

The primary equipment includes a large-diameter MED evaporator unit with integrated flash chambers, steam distribution pipelines, and condensers, all built to support continuous, high-efficiency operation in coastal marine environments. The structural framework was prefabricated for fast on-site installation and modular connection with auxiliary systems.

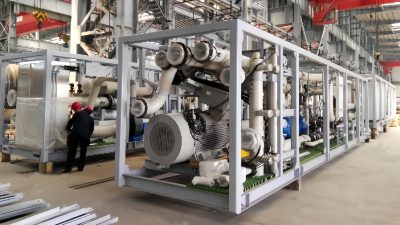

Structural Frame Units for Desalination System

Equipment Specifications

Client :

IDE Ltd. (Israel)

Industry :

Seawater Desalination – Multi-Effect Distillation (MED)

Equipment - 1 :

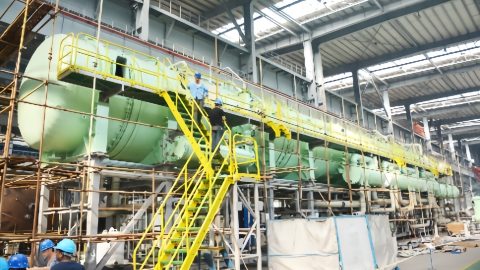

MED Desalination Unit – 3,600 m³/day

Specifications :

Diameter 8–9m × Length 42.6m

Material :

Vessel body, condenser, front/rear heads, flash tank, steam piping, elbows: Q235B

Steel structure supports, piping supports, ladder platforms: Q235B

Quantity :

1 Unit

Equipment - 2 :

Structural Frame Units for Desalination System

Specifications :

Steel Framework: 11865 × 2510 × 2510mm

Material :

Q345B

Quantity :

3 Unit

Technical Highlights:

Heavy-duty Q235B steel vessel for high vacuum resistance and marine-grade corrosion tolerance
Fully integrated cold-side and hot-side heat exchange chambers
Designed for multi-stage heat recovery with minimal energy input
Includes all mechanical components: shell, nozzles, internal supports, ladders, platforms
Modular steel frame (Q345B) structure fabricated for transport and crane-assembly
Full welding QA, blasting + coating, ISO-seaworthy packing

Application Value:

Supports sustainable production of up to 3,600 cubic meters/day of potable water
Enables long-life operation in coastal and offshore desalination plants
Contributes to zero-liquid-discharge (ZLD) strategies
Compatible with renewable energy and hybrid RO/MED systems
Demonstrates capacity to deliver oversized, high-precision desalination systems globally

This project highlights our ability to deliver large-scale desalination pressure equipment and structural assemblies tailored to demanding international standards. Through precise manufacturing, full-process assembly, and integrated logistics, we support IDE and global water clients in building resilient, low-carbon water infrastructure.
