Ammonia Synthesis Tower & Column

The Ammonia Synthesis Tower is a core reactor system in modern fertilizer plants, designed to convert nitrogen (N₂) and hydrogen (H₂) into ammonia (NH₃) under high pressure and temperature in the presence of a catalyst. This tower ensures efficient conversion rates, stable operation, and long catalyst life, while providing the reliability required for continuous industrial production. As a critical unit in the ammonia production process, it plays an essential role in meeting global fertilizer demand and supporting sustainable agricultural output.

WSHI designs and fabricates a full range of process towers and columns for catalytic reactions, absorption, separation, distillation, and stripping services. Engineered to withstand extreme pressure, temperature, and corrosive media, our towers are widely applied in petrochemical, refining, fertilizer, and energy industries. With proven expertise in metallurgy, pressure vessel design, and advanced fabrication, WSHI delivers reliable and efficient solutions tailored to demanding industrial applications.

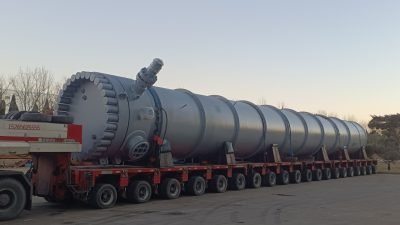

filter: 0; jpegRotation: 0; fileterIntensity: 0.000000; filterMask: 0; module:1facing:0;
hw-remosaic: 0;
touch: (0.50277776, 0.50277776);
modeInfo: ;
sceneMode: Night;
cct_value: 6500;
AI_Scene: (22, -1);
aec_lux: 97.0;
hist255: 0.0;
hist252~255: 0.0;
hist0~15: 0.0; — ammonia synthesis tower

Types of Ammonia Synthesis Tower & Column

Type	Description
Standard Synthesis Tower	Single-bed or multi-bed reactors for conventional Haber-Bosch process; high pressure and temperature operation
Quench-Type Synthesis Tower	Integrated quench zones between catalyst beds for better thermal control and conversion efficiency
Horizontal Flow Synthesis Tower	Horizontal cylindrical design with internal support for catalyst beds, used in modular or space-limited installations
Integrated Ammonia-Methanation Tower	Combines synthesis and methanation functions in a single unit to simplify downstream purification
Skid-Mounted Compact Tower	Compact, transportable synthesis unit for small-scale or mobile ammonia production
High-Efficiency Heat-Recovery Tower	Equipped with internal heat exchangers to recover reaction heat for improved energy efficiency

Technical Data:

Diameter :

max. Ø 13360 mm.

Length :

120000 mm.

Thickness :

100 mm

Pressure :

8 MPa

Weight :

1000 tons

Temperature :

≤ 450°C

Certified Safety, Reliable Quality, Custom-Engineered Pressure Vessels.

— Globally Compliant, Built for Harsh Industrial Conditions.

Application of Ammonia Synthesis Tower & Column

The Ammonia Synthesis Tower & Column is the core reactor system in ammonia production plants, designed to catalytically convert nitrogen (N₂) and hydrogen (H₂) into ammonia (NH₃) under high temperature and high pressure. Equipped with advanced catalyst loading and efficient heat management, it ensures high conversion rates, stable operation, and extended catalyst life. As the heart of modern fertilizer production, the Ammonia Synthesis Tower is essential for ensuring global food security and supporting large-scale industrial chemical processes.

Industry	Application Scenarios	Key Benefits of Ammonia Synthesis Tower
Fertilizer	– Ammonia synthesis loops in urea and ammonium nitrate plants – Integration with CO₂ recovery systems – Continuous production of nitrogen fertilizers	– Ensures high ammonia yield – Stable catalyst performance – Reliable operation for large-scale plants
Chemical	– Raw ammonia supply for nitric acid, methanol, and other downstream units – Hydrogenation reactions – Integration in syngas-based processes	– Handles high pressure & temperature – Compatible with multiple catalysts – High efficiency in chemical conversion
Petrochemical	– Hydrogen recovery & utilization – Ammonia as a feedstock for chemical intermediates – Support for integrated refining-chemical complexes	– Robust under thermal cycling – Long service intervals – Adaptable for process integration
Energy & Power	– Ammonia as a clean hydrogen carrier – Energy storage applications – Emerging fuel technologies	– Contributes to decarbonization – High reliability in continuous operation – Supports energy transition initiatives

As a global supplier of advanced pressure vessels, Weihai Shidao Heavy Industry Co., Ltd. designs and fabricates Ammonia Synthesis Towers with proven expertise in ASME, PED, and ISO standards. Leveraging decades of experience in metallurgy, high-pressure vessel design, and catalyst handling systems, Weihai Shidao ensures superior safety, performance, and durability. With CAD/CAE engineering tools, full material traceability, and rigorous non-destructive testing (NDE), every tower meets the strict requirements of fertilizer and chemical industries worldwide. From large-scale ammonia complexes in Asia to fertilizer and hydrogen-energy projects in the Middle East and Europe, Weihai Shidao delivers high-efficiency, long-lasting solutions for the most demanding process environments.

FAQs

What is the typical operating pressure of an ammonia synthesis Tower & Column?

Normally between 15 and 30 MPa depending on process route.

Can WSHI supply both Tower & Column and internals?

Yes. We provide the complete Tower & Column body with integrated internals and catalyst support systems.

What material is used for ammonia Tower & Column construction?

High-grade alloy steels such as 12Cr2Mo1R, 15CrMo, or client-specified materials.

Reliable Columns for Demanding Industrial Processes
At WSHI, every tower and column is engineered to deliver precision, safety, and efficiency under the most demanding operating conditions. From petrochemical separation to gas dehydration, our vertical vessels are trusted by global clients across industries. With full customization in diameter, height, internals, and materials—and strict compliance with ASME, GB, API, and EN standards—WSHI is your one-stop partner for process column solutions.

📩 Let’s design your next column together.
Whether you need a packed vacuum tower, a stainless-steel scrubber, or a high-temperature distillation column, our team is ready to help.
